Waste Whirler

by H3nry

Published on January 13, 2017

Have any garbage? Just drop the waste in and with the flick of a switch it's in the trash can and your new buddy has glowing eyes.

How To Make It

1

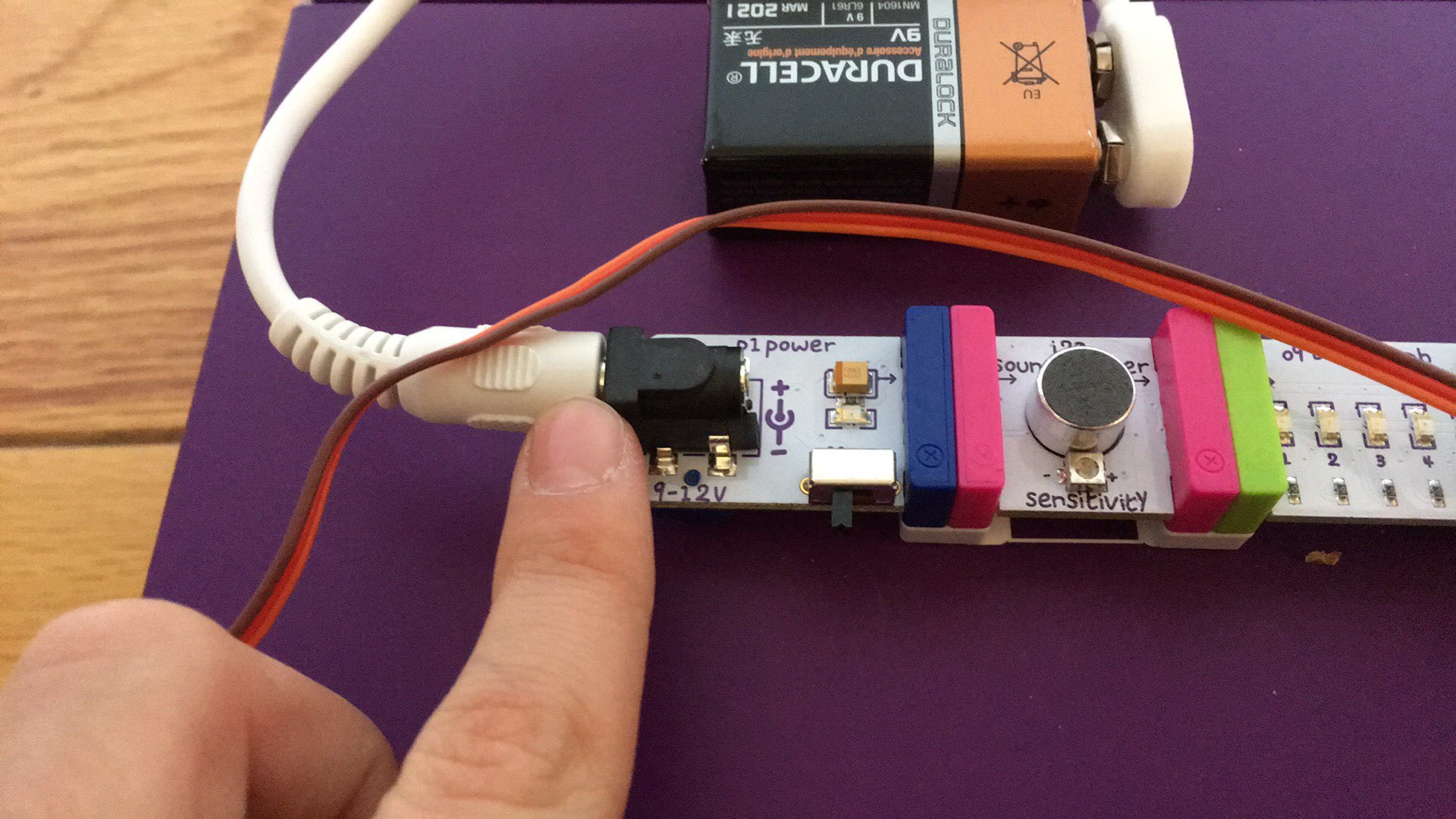

Connect the battery to the power cable and the power cable to the power bit.

2

Snap the power bit to the sound trigger.

3

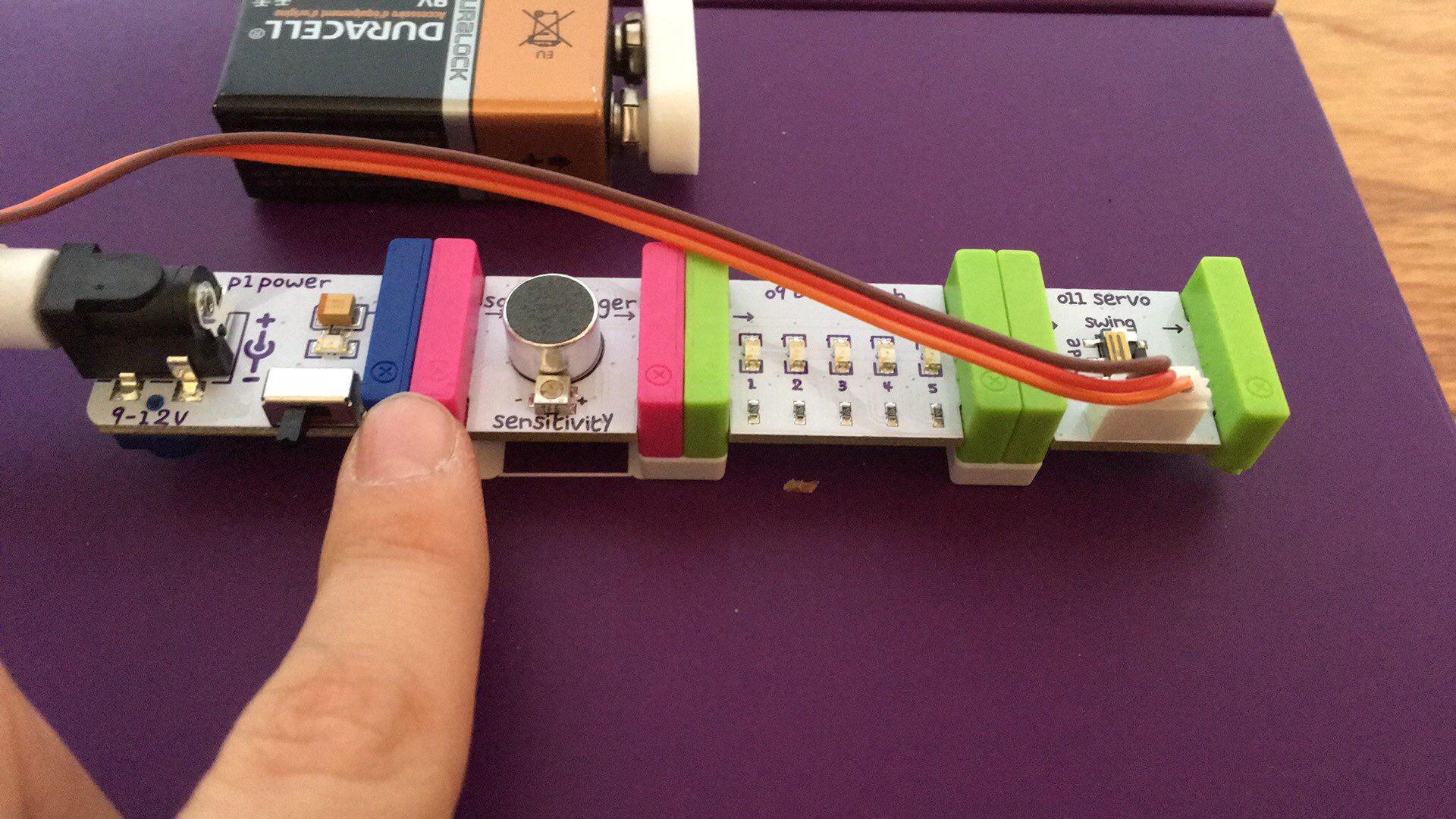

Snap the sound trigger bit to the bargraph bit and the bargraph bit to the servo bit

4

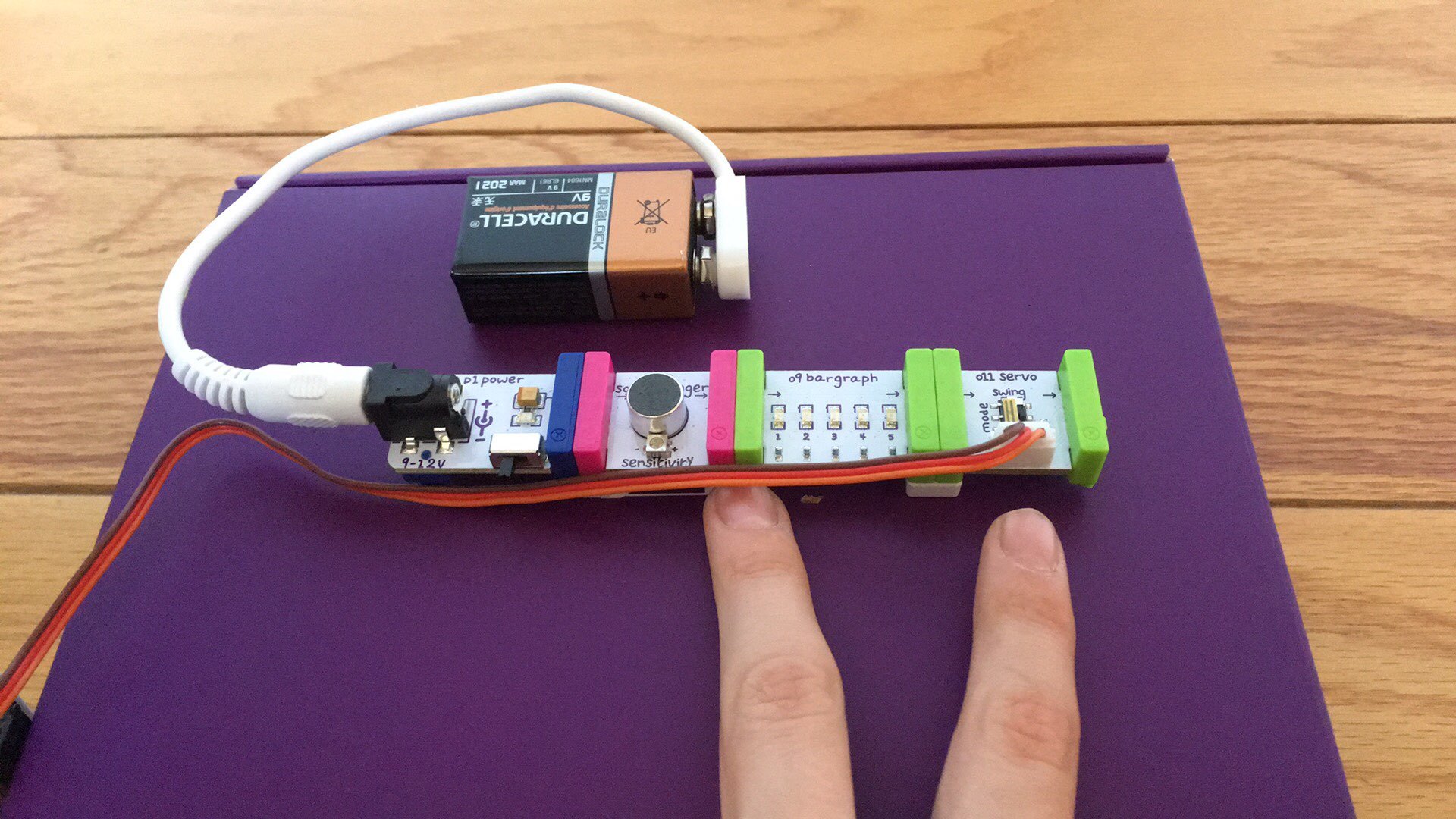

Use 3 adhesive shoes to stick it to the box

5

Snap the servo motor to the servo mount and use one screw to attach it.

6

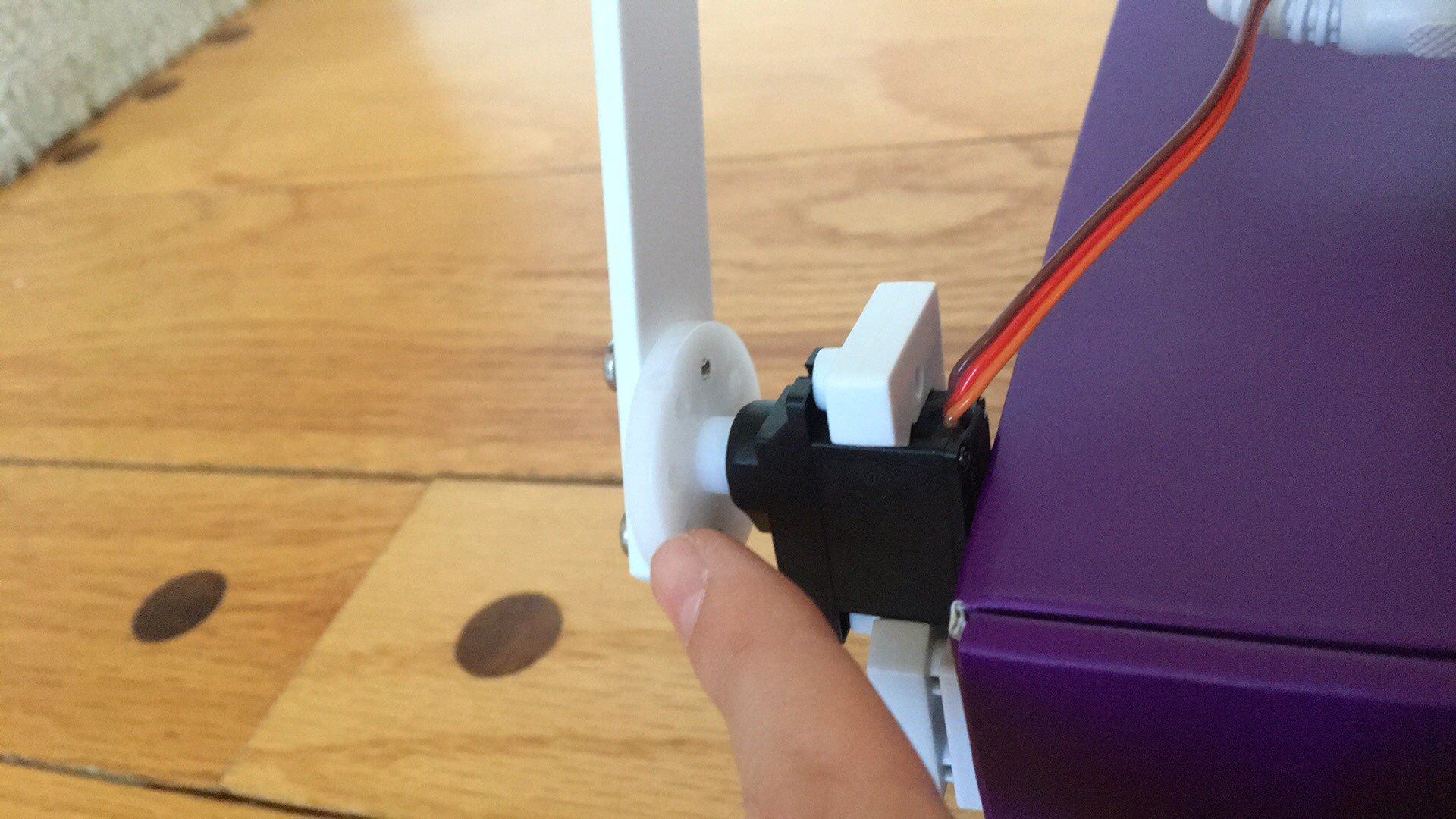

Attach the servo motor to the servo hub.

7

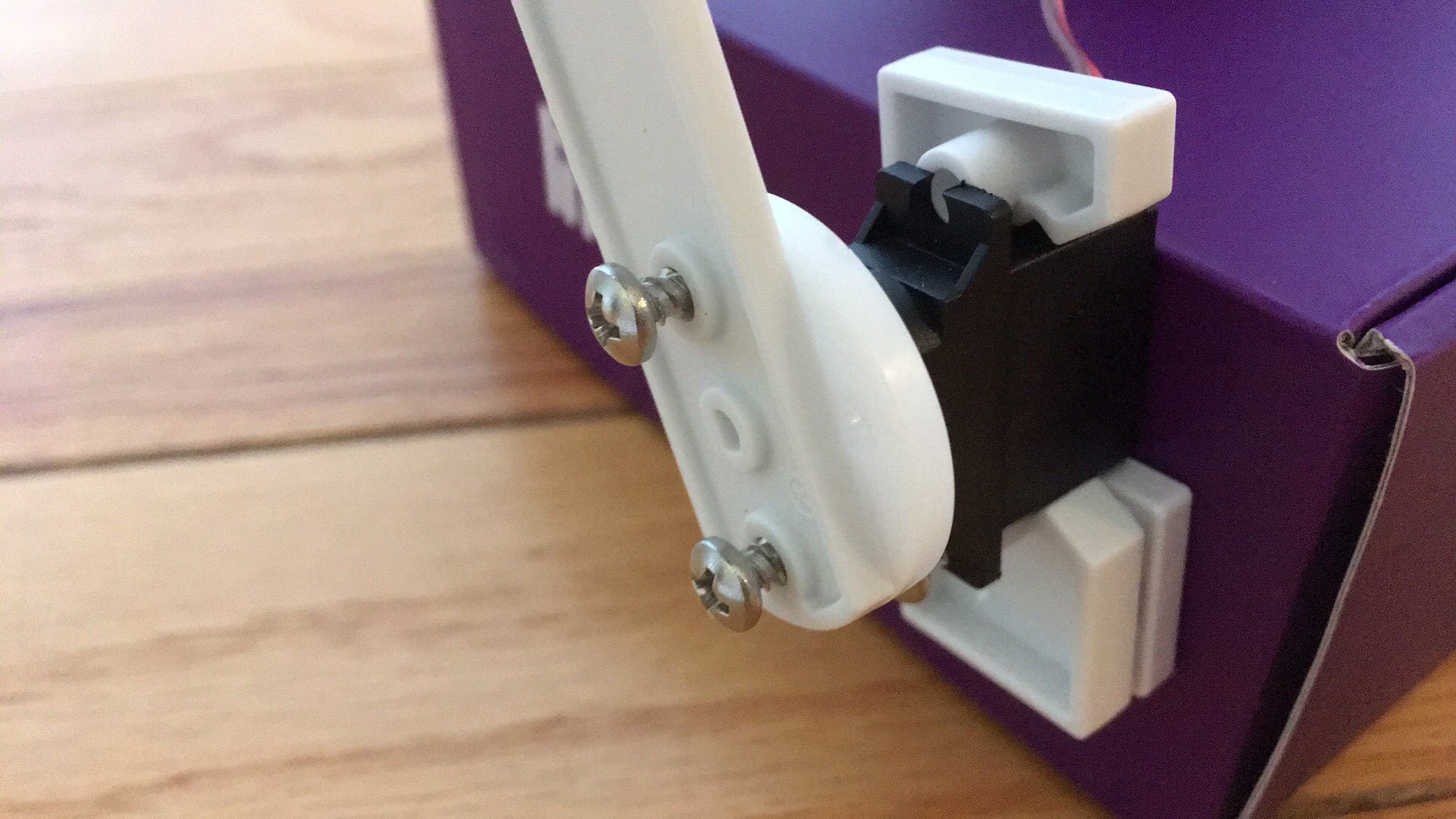

Attach the mechanical arm to the servo hub using two screws.

8

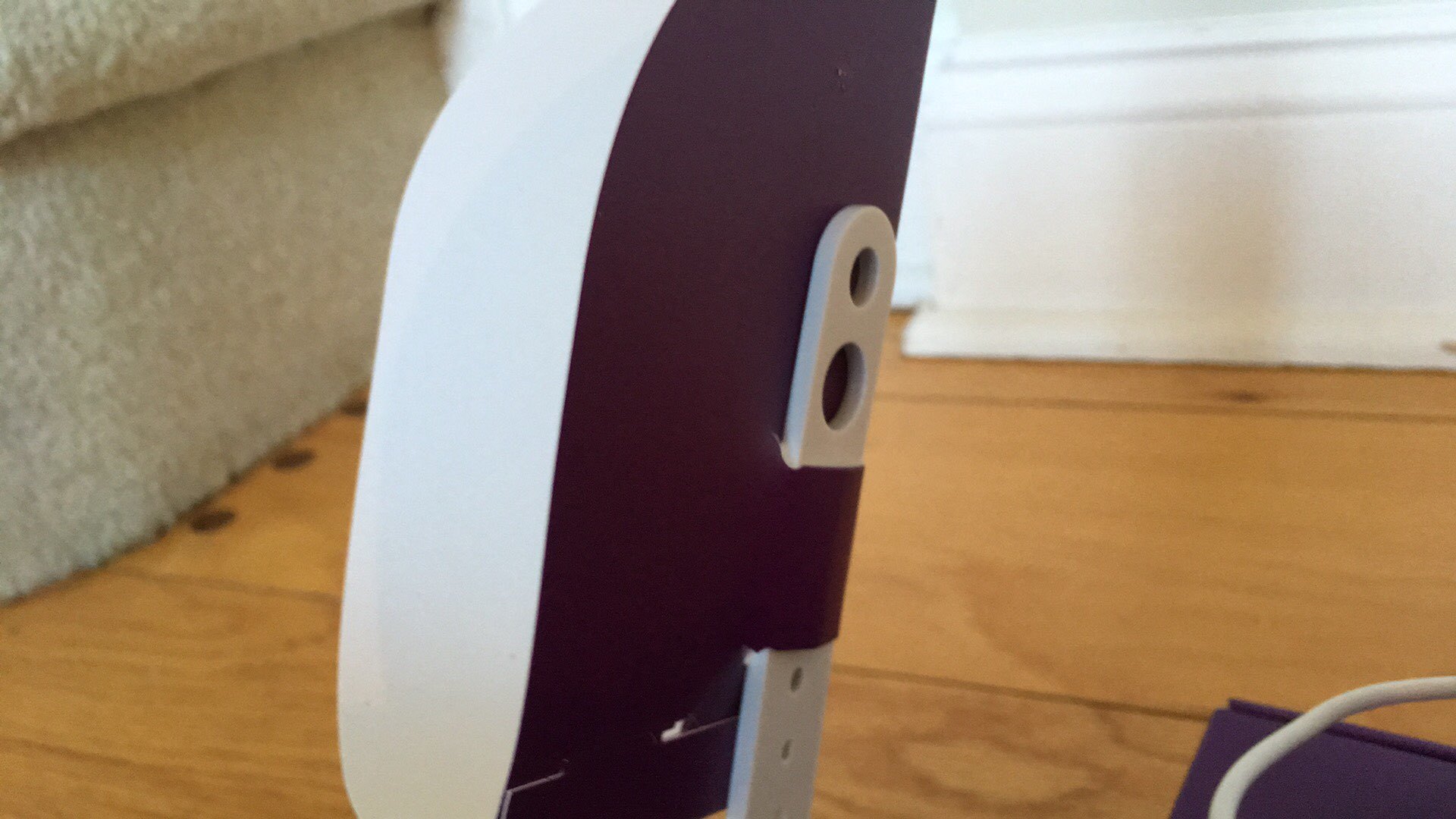

Assemble the template and slide it onto the mechanical arm.

9

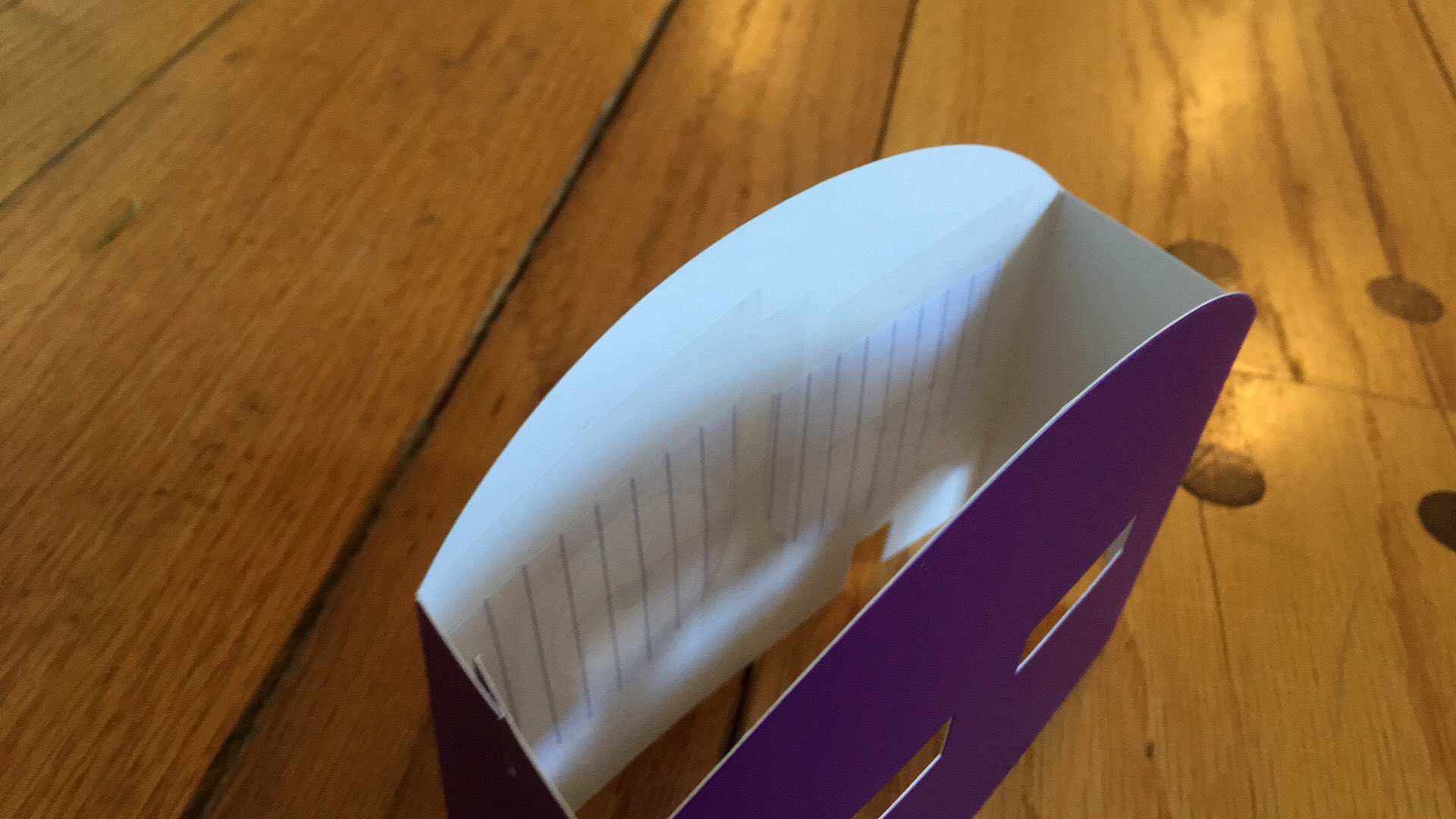

Assemble the template and tape note card cut outs to the eye holes.

10

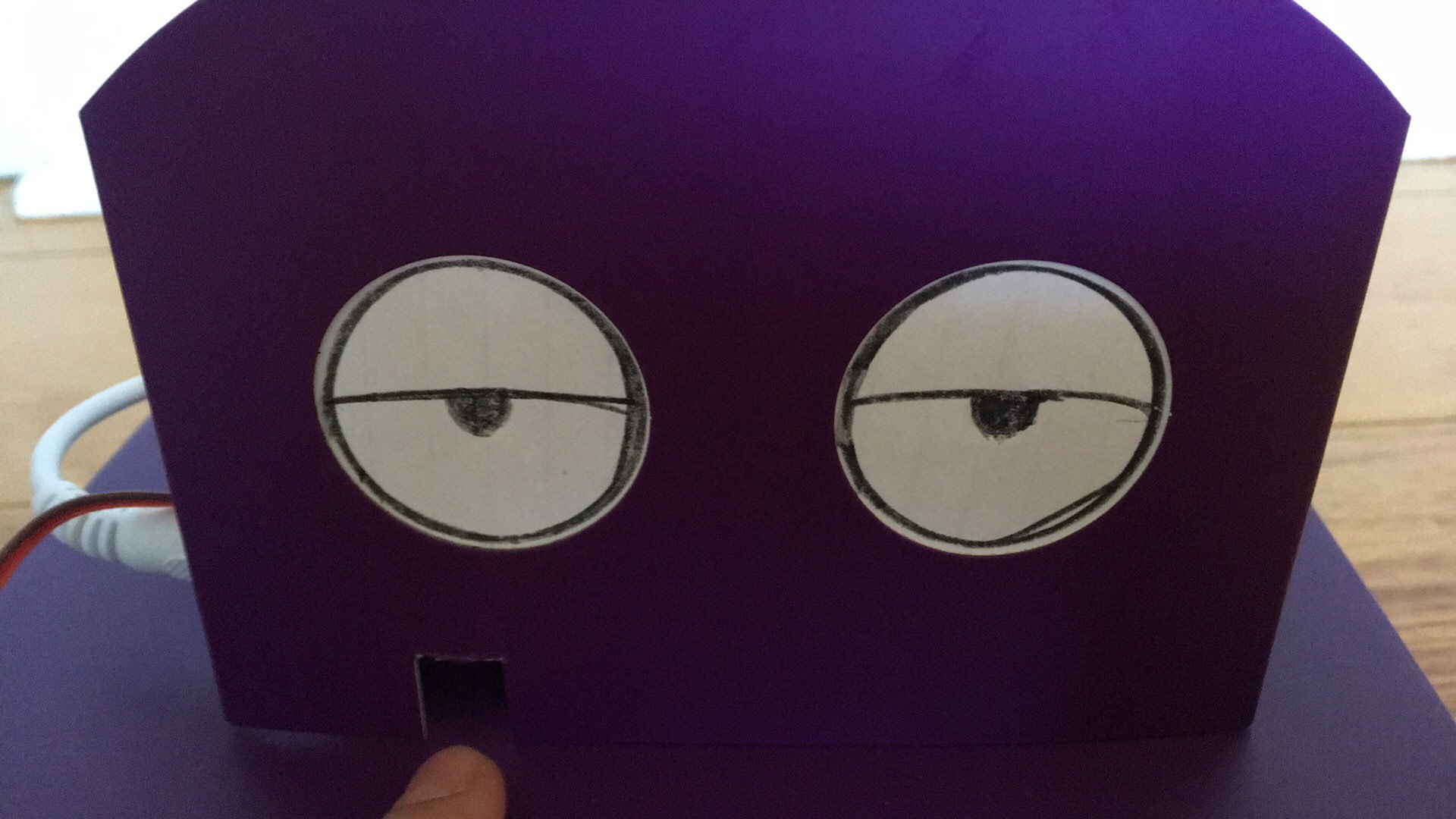

Draw eyes on the note card cut outs and cut a hole to access the switch.

11

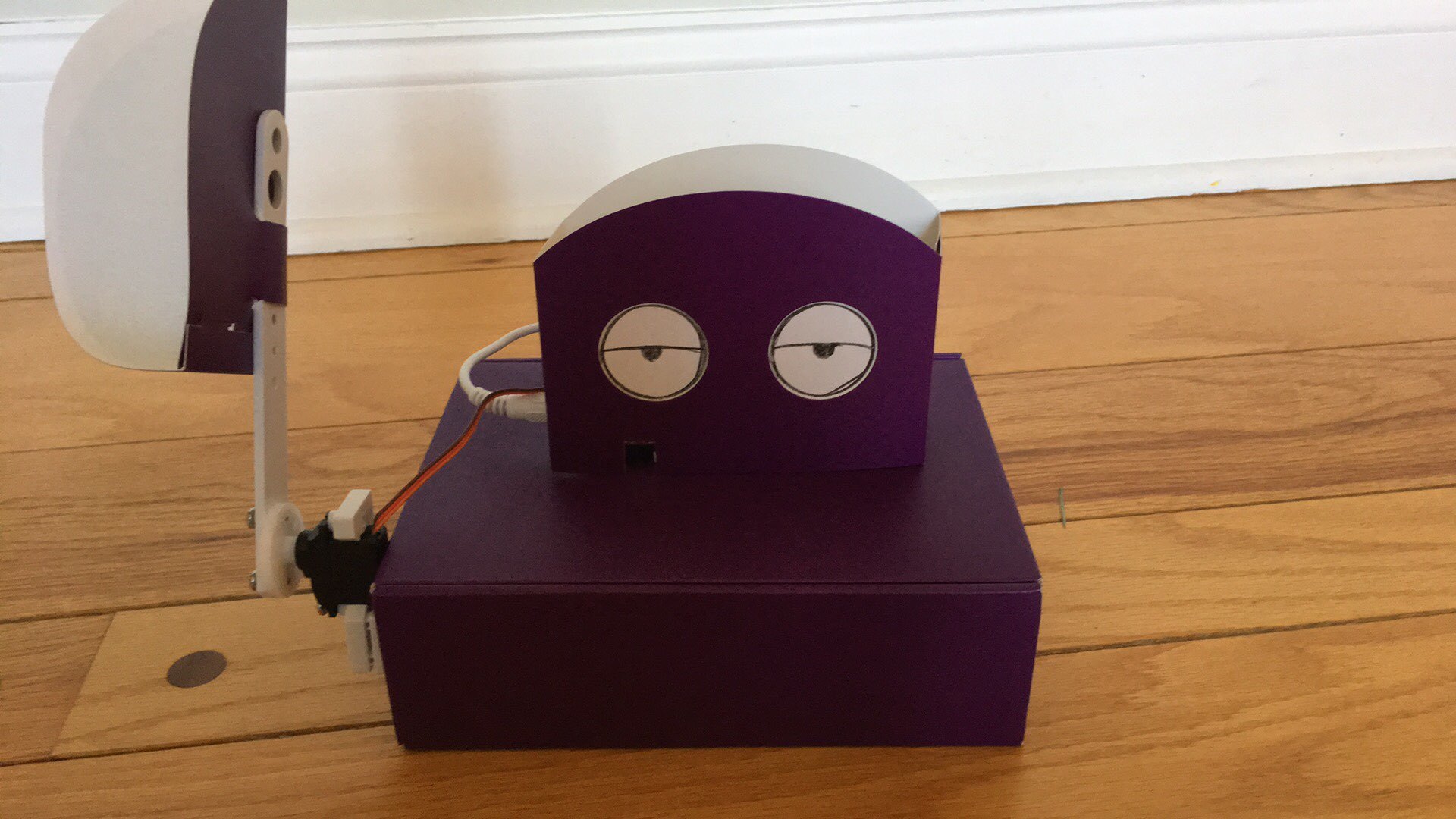

You are done so start whirling waste!
